Versão de 12V, 60RPM

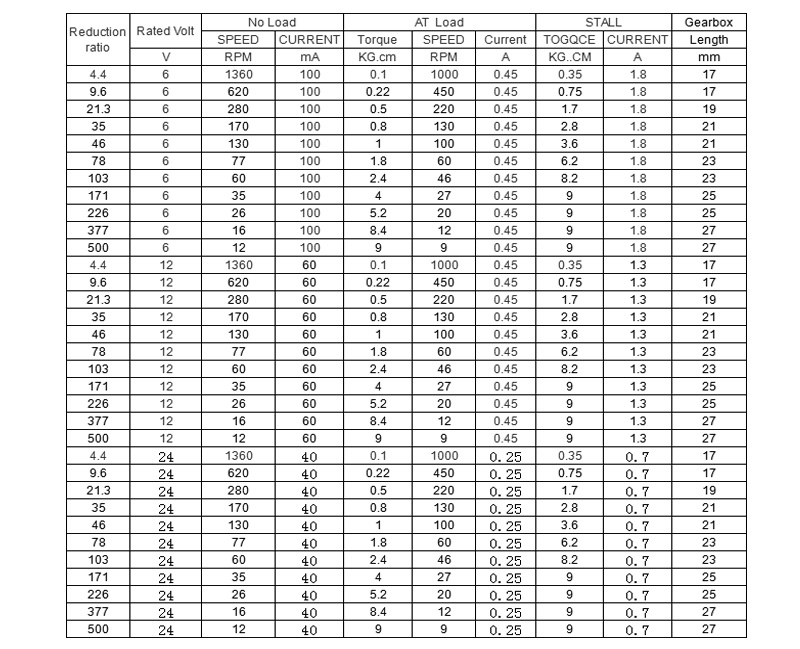

Especificações na página do fornecedor:

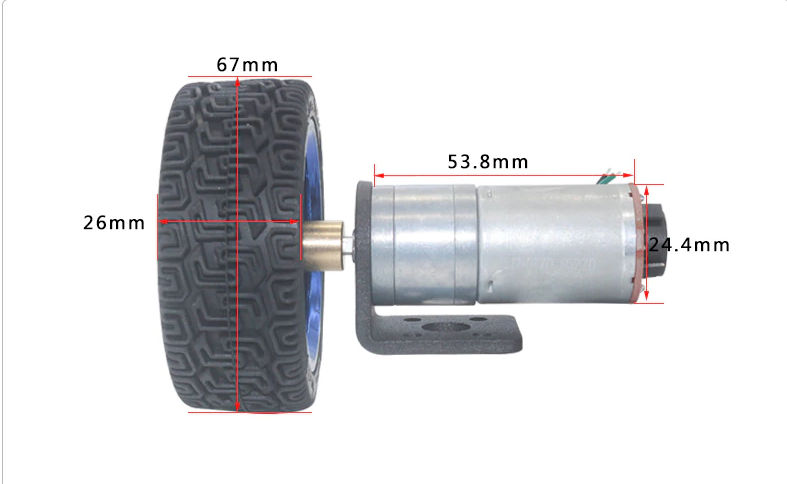

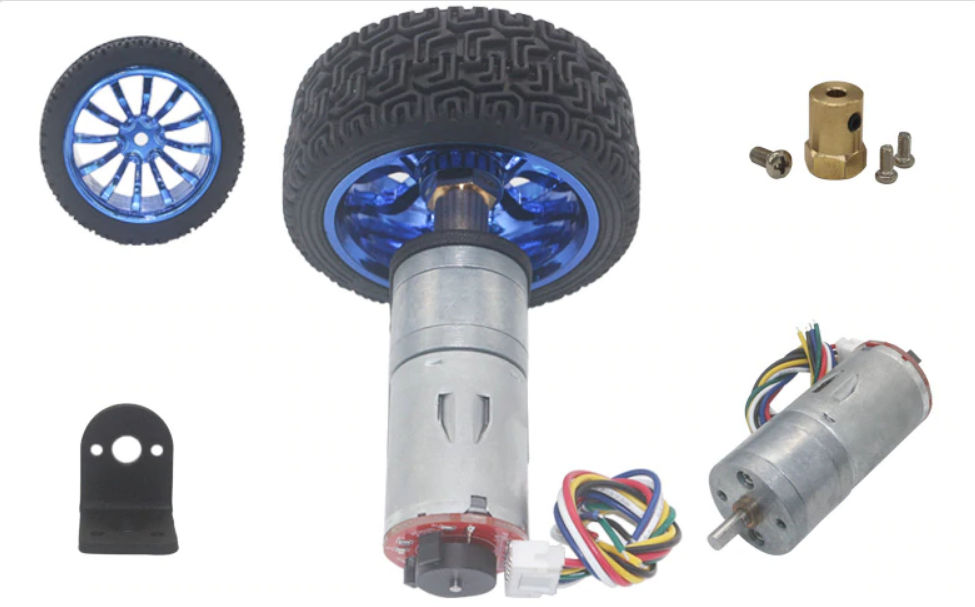

- Product Name: Gear motor wheel kit
- Model Number: JGA25-370-w
- Certification: CCC, ROHS, ce
- Type: Gear Motor
- Efficiency: IE 1
- Construction: Permanent Magnet
- Commutation: Brush
- Continuous Current(A): 0.03A
- Output Power: 0.8W
- Torque: 0.48KG.CM
- Protect Feature: slowdown
Red Wire – motor power supply (+)(change positive and negative of motor the rotation will change)
White Wire – motor power supply (-)(change positive and negative of motor the rotation will change))
Yellow Wire – signal feedback (motor one turn has 11 signals)
Green Wire – signal feedback (motor one turn has 11 signals)
Blue Wire – positive of encoder power supply(+)(3.3-5V),cannot be wrong
Black Wire – negative of encoder power supply(-)(3.3-5V),cannot be wrong
