Motor com a referencia 625500/C
DC geared motor with encoder
Rated voltage: DC 12V
No-load current: 50mA
Stall current: 1A
No-load speed: 64 rpm
Suitable voltage: 6-12V (32-64 rpm)
Reduction ratio: 1:110
Weight: 74 grams
The output shaft of the geared motor rotates 220 turns to output 220 complete pulses.

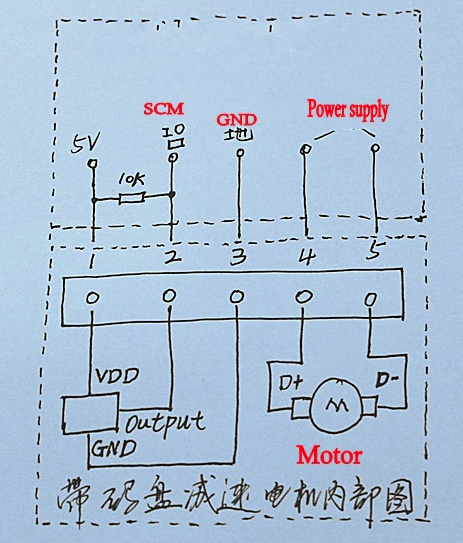

Pin Definition:
1. Hall power input (external DC3-12V);
2. Hall signal output (a 10K pull-up resistance can be read directly by a single chip computer);
3. Hall Ground Wire (External Power Source);
4-5 motor wire (external motor power supply)
