ESP-WROOM-32

Esta placa de desenvolvimento com ESP-WROOM-32 trabalha a 3.3V.

Pinout da dev board ESP32

Internal LED on pin 2

Especificações

• Microcontrolador: x2

Instalar a board (ESP-WROOM-32) no Arduino IDE

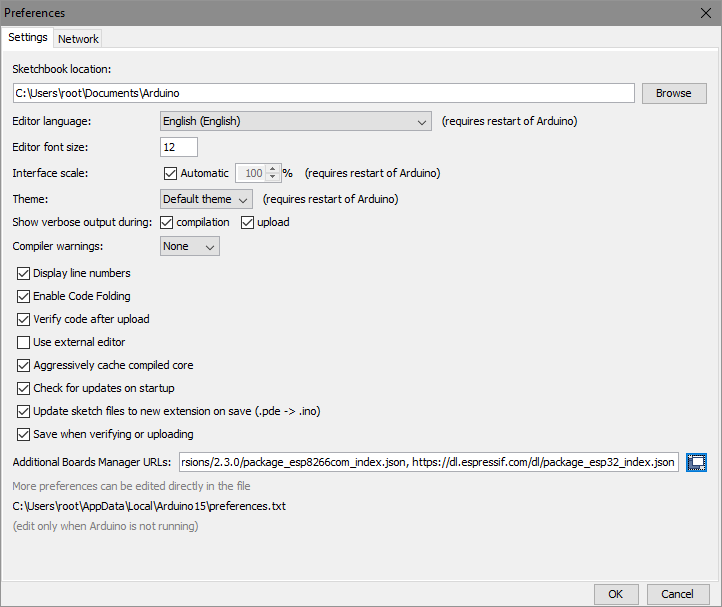

• File > Preferences

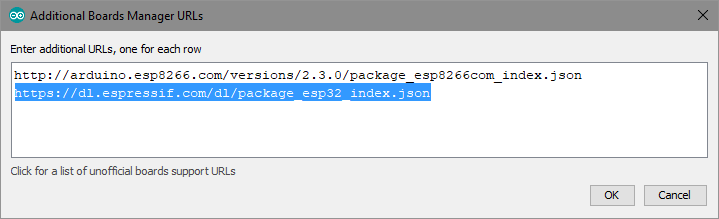

  • Em Additional Board Manager URLs, inserir:
    https://dl.espressif.com/dl/package_esp32_index.json

• Tools > Board > Boards Manager
  Instalar: esp32 by Expressif

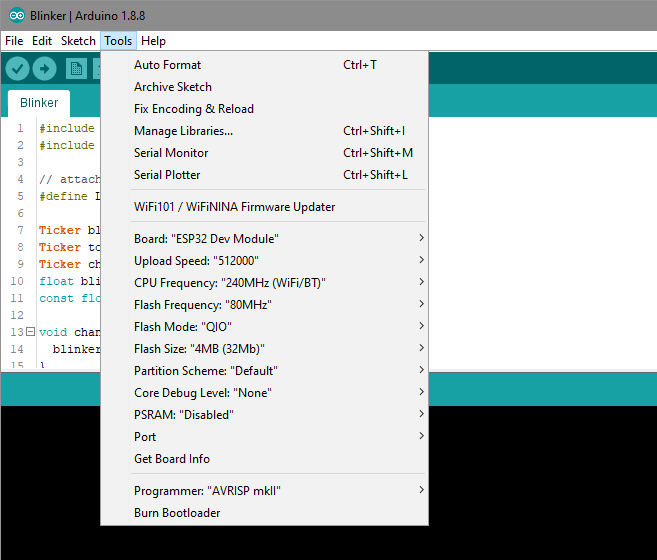

Usar a board (ESP-WROOM-32) no Arduino IDE

Escolher Board  e Respectiva configuração

Tools >

• Board: ESP32 Dev Module
• Upload Speed: 115200
• CPU frequency: 240
• Flash frequency: 80
• Flash mode: QIO
• Flash Size:  4M (32Mb)
• Partition Scheme: Default
• Core Debug Level: None
• PSRAM: Disable

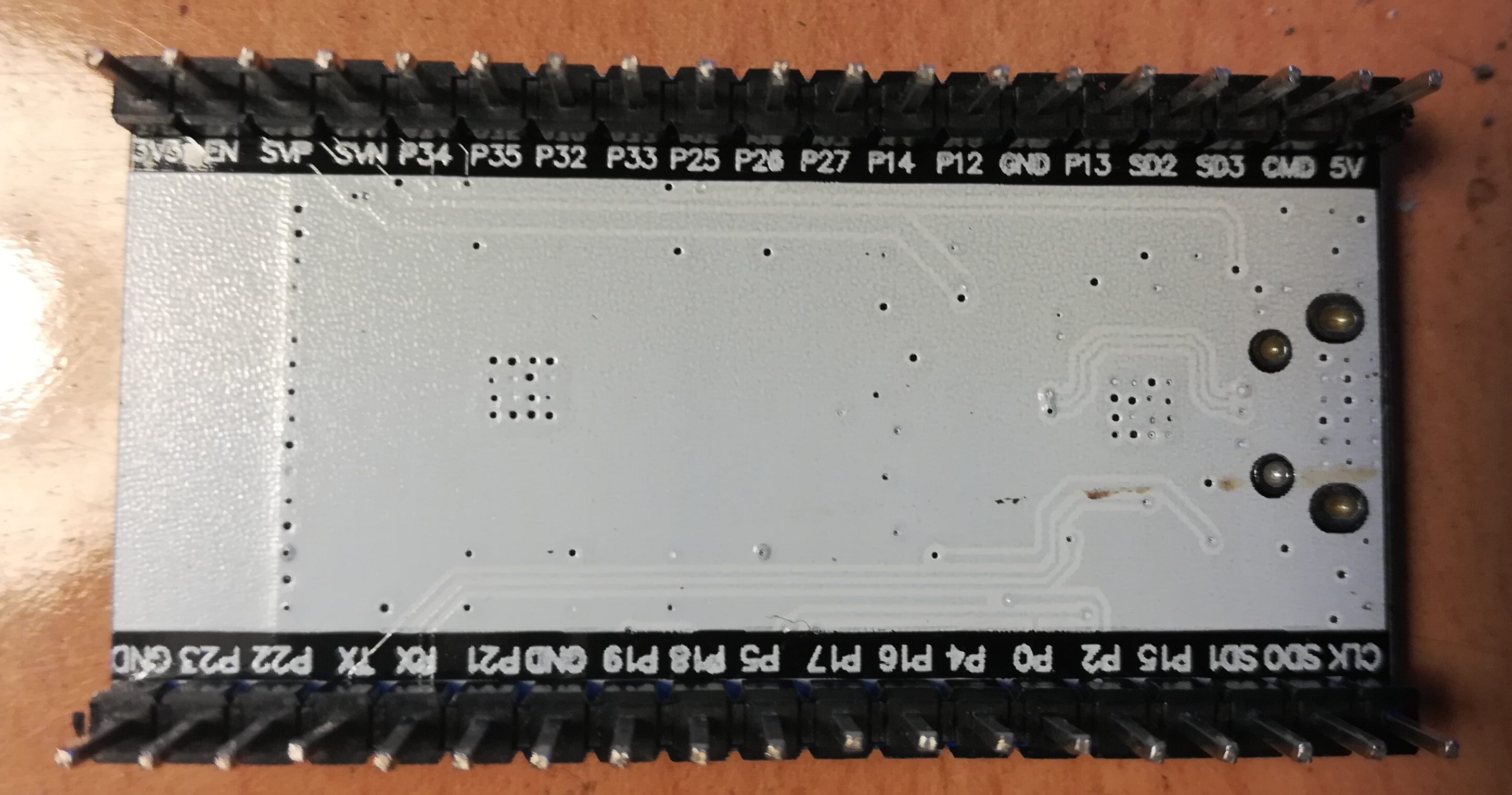

Pinout



Datasheet e Driver

ESP32-WROOM-32 datasheet

ESP32-WROOM-32 Win10 serial driver

Links

https://www.espressif.com/en/products/hardware/esp-wroom-32/overview

https://github.com/espressif/arduino-esp32
